AGM Battery Construction | Understanding AGM Battery Construction is important for anyone driving a modern vehicle that depends on reliable starting power, advanced electrical systems, start-stop technology, and intelligent battery management. AGM stands for Absorbent Glass Mat, a lead-acid battery technology in which the electrolyte is absorbed into a specially designed fiberglass separator rather than being allowed to move freely around the battery. This construction gives AGM batteries a distinct combination of electrical performance, vibration resistance, charge acceptance, and cycling capability.
For drivers looking for professional battery support in Dubai, EuroSwift Auto Services provides a useful starting point for understanding and accessing automotive battery services. AGM technology is particularly relevant when a vehicle has demanding electrical requirements or was originally equipped with an AGM battery by the manufacturer.
Unlike a conventional flooded battery, an AGM battery uses a tightly controlled internal structure. Positive and negative plates are separated by absorbent glass mats, electrolyte is retained within those mats, and the complete assembly is enclosed inside a durable case with pressure-regulating valves. Each component has a specific purpose, and the way those components work together determines the battery’s ability to start an engine and support the vehicle’s electrical system.
This guide explains AGM battery construction from the inside out, including plates, separators, electrolyte, cells, valves, terminals, compression, charging requirements, battery management, common failure mechanisms, Dubai operating conditions, replacement considerations, and professional inspection practices.
1. What Is an AGM Battery?
An AGM battery is a valve-regulated lead-acid battery that uses an absorbent glass mat to retain its electrolyte.
The fundamental electrochemical principle remains similar to other lead-acid batteries. The battery uses positive and negative lead-based plates and sulfuric-acid electrolyte to store and release electrical energy through controlled chemical reactions.
What makes AGM different is the physical arrangement of these materials.
In a conventional flooded battery, the electrolyte remains in liquid form and surrounds the plates. In an AGM battery, the electrolyte is absorbed into a highly porous glass-fiber mat positioned between the plates.
This creates an immobilized electrolyte system.
The result is a battery design that can provide several useful characteristics:
- Strong starting-current capability
- Good charge acceptance
- Improved resistance to vibration
- Low-maintenance operation
- Reduced electrolyte movement
- Suitable cycling capability
- Controlled gas recombination
- Compatibility with many demanding electrical applications
However, AGM should not automatically be considered the best battery for every vehicle. Battery technology must match the manufacturer’s requirements.
A vehicle designed for AGM should generally receive an AGM-compatible replacement of the correct specification.

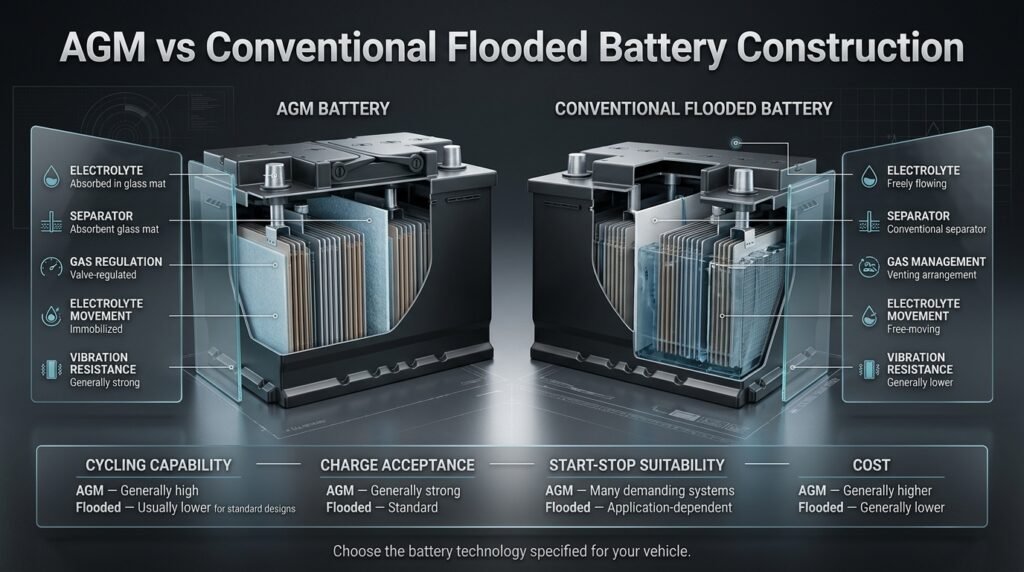

2. Why AGM Battery Construction Is Different
The biggest difference between AGM and traditional flooded battery construction is not simply the outer case. It is the internal relationship between the plates, separator, and electrolyte.
In a flooded battery, the plates sit in a reservoir of liquid electrolyte.
In an AGM battery, the electrolyte is retained within the glass-mat separator. The separator remains in close contact with the plates, creating a compact internal assembly.
This construction changes several physical characteristics of the battery.
Immobilized Electrolyte
Because the electrolyte is absorbed into the separator, it is much less mobile than the liquid electrolyte in a conventional flooded battery.
Plate-to-Separator Contact
The separator remains closely positioned against the plates, helping maintain a consistent internal structure.
Vibration Resistance
The compressed internal assembly can resist movement more effectively than a freely flooded design.
Gas Management
AGM construction supports internal oxygen recombination and uses pressure-relief valves to control internal pressure.
Low-Maintenance Operation
AGM batteries are designed as sealed, valve-regulated units and do not require routine water topping-up like some older serviceable flooded batteries.
These characteristics explain why AGM batteries are commonly selected for vehicles with higher electrical demands.
3. Main Components of AGM Battery Construction
An AGM battery is made from several integrated components.
| AGM Component | Main Purpose |
|---|---|
| Positive plates | Participate in electrochemical reactions |
| Negative plates | Complete the complementary electrochemical reaction |
| AGM separators | Separate plates and retain electrolyte |
| Electrolyte | Enables ionic movement and chemical reactions |
| Battery case | Protects the internal assembly |
| Cell connectors | Connect individual cells in series |
| Terminals | Transfer electrical current to the vehicle |
| Cover | Seals the battery assembly |
| Pressure valves | Control excessive internal pressure |
| Active material | Participates in charge and discharge reactions |
The performance of the final battery depends on the engineering of all these components rather than on one component alone.
For example, a high-quality plate design cannot compensate for incorrect charging, and a good AGM separator cannot prevent failure caused by a serious parasitic electrical drain.
AGM battery performance is therefore the result of electrochemical design, mechanical construction, electrical compatibility, and vehicle application working together.
4. AGM Battery Plates
The plates are among the most important components inside an AGM battery.
A typical automotive AGM battery contains positive and negative plates arranged alternately within each cell. These plates contain active materials that participate in the chemical reactions responsible for storing and releasing electrical energy.
The plates must provide enough reactive surface area to deliver the required current while also maintaining structural durability through repeated charging and discharging.
Positive Plates
The positive plates contain lead-based active material designed to participate in the battery’s electrochemical reactions.
During discharge, the chemical state of the active material changes as the battery supplies electrical energy to the vehicle.
During charging, the process is reversed as electrical energy from the vehicle’s charging system restores the battery’s chemical condition.
Negative Plates
Negative plates contain a different active-material formulation and participate in the complementary reaction.
The positive and negative plates work together through the electrolyte to create the electrical potential of the battery.
Plate Design Matters
Plate dimensions, grid construction, active-material formulation, thickness, and manufacturing quality can influence:
- Starting performance
- Capacity
- Charge acceptance
- Internal resistance
- Cycling durability
- Resistance to deterioration
This explains why two batteries with the same nominal voltage may perform very differently.

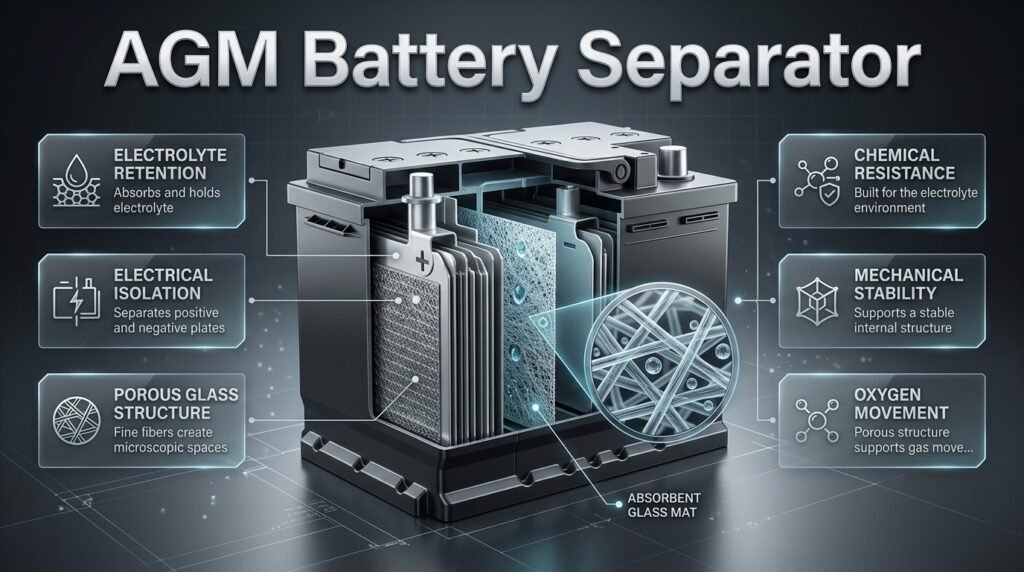

5. The Absorbent Glass Mat Separator
The absorbent glass mat separator is the defining feature of AGM battery construction.
It consists of fine glass fibers arranged into a porous structure capable of absorbing and retaining sulfuric-acid electrolyte.
The separator sits between the positive and negative plates.
Its first function is electrical isolation. It prevents the plates from making direct electrical contact, which would cause an internal short circuit.
Its second function is electrolyte retention.
The glass fibers create a network of microscopic spaces where electrolyte is held. This keeps the electrolyte available close to the active material on the plates.
Why Glass Fiber Is Used
Glass fiber is particularly suitable because it can provide:
- High electrolyte absorption
- Chemical resistance
- Porous structure
- Mechanical stability
- Support for oxygen movement
- Reliable separation between plates
The AGM separator should therefore not be thought of as ordinary insulation.
It is a highly engineered part of the electrochemical system.
6. How Electrolyte Is Held Inside an AGM Battery
The electrolyte in an AGM battery is still sulfuric acid mixed with water, but it is physically retained in the glass mat.
This is one of the most important differences between AGM and flooded battery construction.
Instead of a large pool of freely moving liquid surrounding the plates, the electrolyte occupies the pores within the separator.
The result is an immobilized electrolyte system.
Advantages of Electrolyte Immobilization
This design helps provide:
- Reduced electrolyte movement
- Stronger vibration resistance
- Close contact between electrolyte and plates
- Better internal mechanical stability
- Support for controlled gas recombination
It also contributes to the battery’s low-maintenance characteristics.
However, the battery remains a chemical energy-storage device and should always be handled according to manufacturer safety instructions.
7. AGM Cell Construction
A typical automotive 12-volt AGM battery contains six individual cells connected in series.
Each cell has a nominal voltage of approximately two volts.
Inside each cell are multiple positive plates, negative plates, separators, and electrolyte.
The cells are then connected internally so their voltages add together.
Conceptually:
Cell 1 + Cell 2 + Cell 3 + Cell 4 + Cell 5 + Cell 6 = approximately 12 volts nominal
The actual measured voltage of a battery varies according to state of charge, temperature, charging condition, and battery condition.
Why Cell Construction Matters
A problem inside one cell can affect the performance of the complete battery.
For example, severe internal deterioration in one cell can reduce overall voltage and starting capability.
This is one reason professional battery testing should assess battery condition rather than relying only on a basic voltage measurement.
8. AGM Battery Case Construction
The outer case protects the internal components from the environment.
Automotive AGM battery cases are typically manufactured from durable plastic materials designed to withstand vibration, temperature changes, mechanical stress, and normal automotive operating conditions.
The case must also maintain the internal pressure-management system.
Inside the case, the cells and plate assemblies are arranged according to the battery manufacturer’s design.
The internal assembly must remain stable because unnecessary movement can contribute to mechanical damage over time.
Battery Mounting Is Important
Even though AGM batteries are highly resistant to vibration, the battery should still be secured correctly.
A loose battery can experience unnecessary movement during:
- Acceleration
- Braking
- Cornering
- Rough-road driving
- Engine vibration
Correct mounting is therefore part of proper Vehicle Maintenance.
9. Plate Compression in AGM Construction
One of the less visible but important aspects of AGM battery construction is internal compression.
The plates and glass-mat separators are assembled in a controlled arrangement that maintains close contact between the components.
This helps support:
- Mechanical stability
- Electrolyte distribution
- Vibration resistance
- Consistent internal contact
- Efficient battery operation
The exact compression method varies by manufacturer.
This is another reason AGM batteries should not be opened, modified, or physically altered. Their internal structure is engineered as a complete system.
10. AGM Valve-Regulated Construction
AGM batteries belong to the VRLA, or valve-regulated lead-acid, family.
The battery is designed to operate as a controlled system in which gases generated during charging can be managed internally.
Pressure-relief valves are included to prevent excessive internal pressure.
Under normal conditions, the battery’s internal chemistry is designed to encourage oxygen recombination, reducing the amount of water that would otherwise be lost.
If pressure becomes excessive, the valve can release gas.
Why the Valve Matters
The valve system provides:
- Pressure control
- Support for sealed operation
- Protection against excessive internal pressure
- Controlled gas management
The valve should never be deliberately removed, punctured, or modified.
11. Oxygen Recombination in AGM Batteries
Oxygen recombination is an important part of AGM technology.
During charging, oxygen can be generated at the positive plate.
Because the AGM separator is porous and the electrolyte is immobilized, oxygen can move through the internal structure toward the negative plate.
There, it can participate in chemical reactions that help convert it back into water.
This process reduces water loss under normal operating conditions.
It is one of the reasons AGM batteries can operate with very little routine electrolyte maintenance.
However, oxygen recombination has limits.
Excessive charging voltage, high temperatures, battery deterioration, or charging-system faults can disturb normal battery operation.

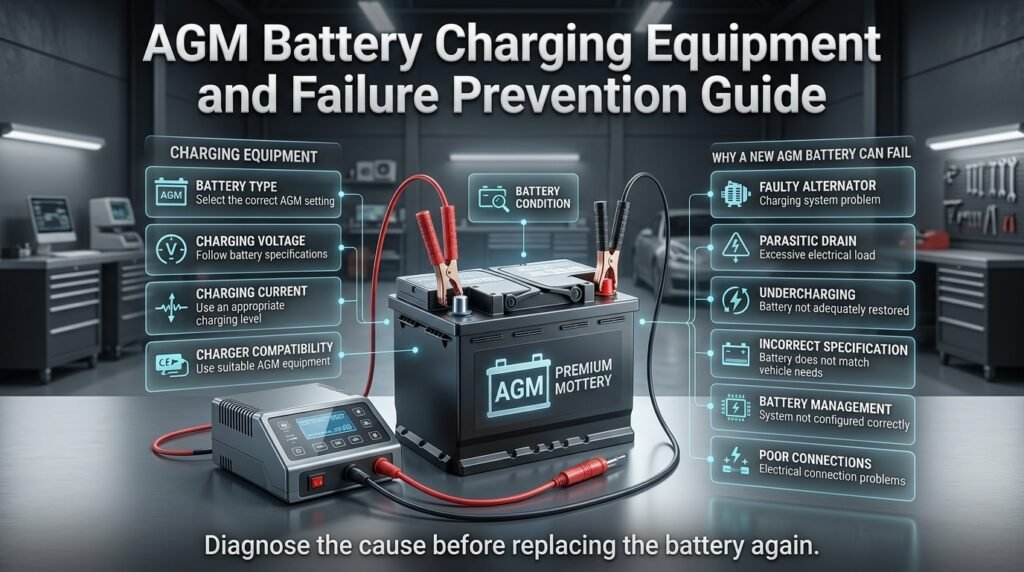

That is why AGM batteries require an appropriate charging system.
12. AGM Battery Construction and Internal Resistance
Internal resistance describes the resistance to current flow inside the battery.
Lower internal resistance generally supports stronger current delivery, although actual battery performance depends on temperature, state of charge, design, age, and testing conditions.
AGM construction can provide favorable internal resistance characteristics because the plates and electrolyte are arranged closely within the compressed separator system.
This can support high current delivery during engine starting.
Why Internal Resistance Matters
High internal resistance can contribute to:
- Greater voltage drop under load
- Reduced starting performance
- Lower effective current delivery
- Increased energy losses
Professional battery testers can evaluate battery condition using conductance or other suitable diagnostic methods.
A simple voltage reading does not tell the complete story.
13. AGM Battery Construction for High Starting Current
Starting an internal-combustion engine requires a large amount of electrical current for a short period.
The starter motor can draw substantial current while the engine is being cranked.
The battery therefore needs to maintain sufficient voltage while delivering high current.
AGM battery construction can support this requirement through:
- Plate design
- Large reactive surface area
- Low internal resistance characteristics
- Close electrolyte contact
- Robust internal construction
This is particularly useful in vehicles with larger engines or high electrical demands.
However, starting performance also depends on:
- Battery state of charge
- Temperature
- Starter condition
- Cable resistance
- Ground connections
- Engine mechanical condition
A battery should therefore not be blamed automatically when a vehicle cranks slowly.
14. AGM Batteries and Start-Stop Technology
Modern start-stop systems can switch the engine off when the vehicle stops and restart it when driving resumes.
This creates different demands from traditional driving.
The battery may need to support:
- More frequent engine restarts
- Electrical accessories while the engine is stopped
- Rapid recharge after restarting
- Repeated cycling
- Intelligent charging strategies
AGM technology is well suited to many demanding start-stop applications.
However, some vehicles use EFB technology instead.
The correct battery depends on the manufacturer’s design.
Installing an AGM battery simply because it is considered more advanced is not always necessary. The vehicle’s electrical architecture should determine the correct technology.
15. AGM Battery Construction and Modern Electrical Systems
Vehicles have become increasingly dependent on electrical and electronic systems.
Depending on the vehicle, the battery may support:
- Digital instrument clusters
- Infotainment systems
- Security systems
- Electronic control modules
- Cameras
- Sensors
- Driver-assistance systems
- Electric seats
- Heated accessories
- Connectivity systems
- Lighting systems
- Electronic tailgates
The battery does not necessarily power all these systems continuously by itself, because the alternator and vehicle charging system also contribute.
However, the battery remains an important energy reservoir.
When the engine is off, the battery can continue supporting selected systems.
This makes battery health increasingly important in modern vehicles.
16. AGM Battery vs Conventional Flooded Battery Construction
Understanding the structural differences makes battery selection easier.
| Construction Feature | AGM | Conventional Flooded |
|---|---|---|
| Electrolyte position | Absorbed in glass mat | Freely flowing |
| Separator | Absorbent glass mat | Conventional separator |
| Gas regulation | Valve-regulated | Venting arrangement |
| Electrolyte movement | Immobilized | Free-moving |
| Vibration resistance | Generally strong | Generally lower |
| Maintenance | Low | Depends on battery design |
| Cycling capability | Generally high | Usually lower for standard designs |
| Charge acceptance | Generally strong | Standard |
| Start-stop suitability | Many demanding systems | Application-dependent |
| Cost | Generally higher | Generally lower |
The correct choice should always be based on the vehicle manufacturer’s specifications.
17. AGM vs EFB Battery Construction
EFB stands for Enhanced Flooded Battery.
It improves upon traditional flooded construction but remains fundamentally different from AGM.
EFB batteries use a liquid electrolyte design with enhanced plate construction and separator technology.
AGM instead uses immobilized electrolyte held within glass mats.
| Characteristic | EFB | AGM |
|---|---|---|
| Electrolyte | Flooded | Absorbed |
| Separator | Enhanced conventional design | Glass mat |
| Cycling capability | Improved | Generally higher |
| Charge acceptance | Improved | Strong |
| Vibration resistance | Improved | Strong |
| Typical application | Moderate start-stop systems | More demanding electrical systems |
| Cost | Moderate | Generally higher |
Neither should automatically replace the other.
The vehicle manufacturer’s specification remains the deciding factor.
18. AGM Battery Charging Requirements
AGM batteries require charging conditions appropriate for AGM technology.
The charging voltage and charging profile must be compatible with the battery and vehicle.
Problems can arise if the charging system:
- Undercharges the battery
- Overcharges the battery
- Uses an inappropriate charging profile
- Has a faulty voltage regulator
- Has an alternator problem
Repeated battery failure should therefore trigger charging-system testing.
Replacing the battery without diagnosing the charging system can result in another premature failure.
This is where professional Engine Diagnostics and electrical-system testing can be valuable.
19. AGM Battery and Intelligent Charging Systems
Many modern vehicles use intelligent charging systems.
Instead of maintaining one fixed charging voltage under every driving condition, the vehicle may adjust charging according to factors such as:
- Battery state of charge
- Vehicle load
- Driving conditions
- Temperature
- Energy-management strategy
- Battery condition
Some vehicles use a battery sensor mounted around or near the negative terminal.
This sensor can provide information to the vehicle’s energy-management system.
As a result, AGM battery replacement may require more than physically installing a new battery.
20. Battery Registration After AGM Replacement
Some modern vehicles require battery registration, adaptation, or coding after installation.
The exact procedure depends on the vehicle.
The system may need to be informed that a new battery has been installed so that charging and energy management can be adjusted appropriately.
A professional replacement process may therefore involve:
- Identifying the original battery technology.
- Confirming replacement specifications.
- Inspecting the battery compartment.
- Removing the old battery safely.
- Installing the replacement.
- Checking terminals and ground connections.
- Registering or adapting the battery if required.
- Checking charging performance.
- Clearing relevant faults where appropriate.
- Confirming correct vehicle operation.
Ignoring vehicle-specific procedures can cause charging-management problems on some models.
21. AGM Battery Construction and Dubai Climate
Climate can have a major influence on automotive batteries.
Dubai’s high temperatures can accelerate battery aging. Heat can increase the rate of chemical reactions inside a battery and can contribute to faster deterioration over time.
The vehicle’s usage pattern can add additional stress.
Examples include:
- Heavy air-conditioning use
- Frequent traffic congestion
- Short journeys
- Long periods of parking
- Frequent engine restarts
- High electrical accessory use
For this reason, drivers in Dubai should not wait until the vehicle completely fails before checking battery condition.
Periodic testing can identify declining performance before a no-start situation occurs.
22. AGM Batteries and Air-Conditioning Load
Air conditioning is particularly important in hot climates.
The air-conditioning system itself is driven primarily by the engine and associated mechanical/electrical systems, but the vehicle’s electrical system also supports climate-control electronics, blower motors, control modules, sensors, and other components.
During slow traffic or idling, the vehicle may experience different electrical and charging conditions compared with steady highway driving.
A weak battery can therefore become more noticeable in demanding urban conditions.
If starting performance has changed, the battery and charging system should be tested rather than assuming the climate alone is responsible.
23. Common Causes of AGM Battery Failure
AGM batteries are durable, but they are not immune to failure.
Common failure mechanisms include:
Sulfation
Repeated operation at a low state of charge can encourage sulfate buildup and reduce battery performance.
Excessive Heat
High temperatures can accelerate aging.
Overcharging
Incorrect charging voltage can increase internal stress and water loss.
Undercharging
Persistent undercharging can prevent the battery from returning to a healthy state of charge.
Plate Degradation
Repeated cycling gradually affects active material and plate structure.
Electrical Drain
A parasitic electrical load can discharge the battery while the vehicle is parked.
Physical Damage
Impact, cracks, loose mounting, or damaged terminals can compromise the battery.
24. AGM Battery Construction and Parasitic Drain
A battery that repeatedly becomes flat may not necessarily be defective.
A vehicle can have an electrical system that continues drawing current after the vehicle is switched off.
Potential causes include:
- Aftermarket accessories
- Faulty control modules
- Incorrect accessory installation
- Interior or exterior lighting problems
- Security-system faults
- Electronic modules that fail to enter sleep mode
If the vehicle requires a Car Jumpstart repeatedly, the cause should be investigated.
Jumpstarting restores temporary starting ability but does not correct an electrical drain or repair a deteriorated battery.
25. AGM Battery Inspection Process
A professional AGM battery inspection should examine the battery and the wider electrical system.
Visual Inspection
Check:
- Battery case
- Terminals
- Cables
- Ground connections
- Mounting bracket
- Signs of physical damage
Voltage Testing
Measure battery voltage under appropriate conditions.
Battery Health Testing
Use suitable testing equipment to evaluate starting capability and battery condition.
Charging-System Testing
Check alternator output and charging behavior.
Electrical Drain Testing
If repeated discharge is occurring, investigate possible parasitic loads.
Vehicle Diagnostic Scan
Where appropriate, check the vehicle’s battery-management system and electronic modules.
A complete inspection is more informative than simply asking whether the battery “has voltage.”
26. AGM Battery Testing: Voltage vs Battery Health
One of the most common misconceptions is that a battery with normal voltage must be healthy.
That is not necessarily true.
Voltage provides useful information about state of charge, but it does not fully describe the battery’s ability to deliver high current.
A battery can show a reasonable resting voltage while having reduced starting capability.
This is why professional testing may include:
- Open-circuit voltage
- Conductance testing
- Starting-current assessment
- Load testing where appropriate
- Charging-system testing
The correct testing method depends on the battery, vehicle, and diagnostic equipment.
27. AGM Battery Replacement Considerations
When an AGM battery needs replacement, the replacement should match the vehicle’s requirements.
Important specifications may include:
- Battery technology
- Voltage
- Capacity
- Starting-current rating
- Physical dimensions
- Terminal configuration
- Polarity
- Mounting design
- Manufacturer requirements
A battery that physically fits the compartment may still be unsuitable electrically.
For drivers who need professional Battery Replacement, EuroSwift Auto Services offers a dedicated battery service page that can be used as a starting point for vehicle-specific battery assistance: Car Battery Replacement Near Me in Dubai.
28. AGM Battery Replacement and Battery Brands
Different AGM battery manufacturers use different internal designs and specifications.
When selecting a replacement, the focus should remain on:
- Correct technology
- Correct specifications
- Genuine product quality
- Correct physical fit
- Vehicle compatibility
- Appropriate installation
For drivers comparing battery options, EuroSwift Auto Services provides dedicated pages for several battery brands.
For example, when an Amaron AGM-compatible application is appropriate, the dedicated Amaron Car Battery Replacement Dubai page provides brand-specific battery information.
For Bosch applications, the Bosch Car Battery Replacement Dubai page can be used to explore the available service information.
The important point is that the brand should come after confirming the vehicle’s actual battery specification.
29. AGM Battery Options and Tuflong
Tuflong is another battery brand that may be relevant when comparing suitable automotive battery applications.
Drivers considering this option can review the dedicated Tuflong Car Battery Replacement Dubai service page.
However, battery selection should never be based solely on brand recognition.
The correct battery must match the vehicle’s technical requirements.
A professional technician should confirm the required battery type, size, capacity, starting specification, and charging compatibility before replacement.
30. Dedicated AGM Battery Replacement Service
For vehicles specifically requiring AGM technology, EuroSwift Auto Services also has a dedicated AGM Battery Replacement Dubai page.
This is particularly relevant when a vehicle has:
- Start-stop technology
- High electrical demand
- Factory-fitted AGM battery
- Intelligent battery management
- Advanced electronic systems
The dedicated AGM service page can serve as the more focused internal resource, while this article explains the technical construction behind the technology.
That distinction is useful for SEO as well as user experience because the article answers how AGM batteries are constructed, while the dedicated service page addresses AGM battery replacement.
31. Other Battery Technologies and Replacement Options
AGM is only one part of the modern automotive battery market.
Depending on the vehicle, drivers may encounter several battery brands and technologies.
EuroSwift Auto Services also provides dedicated information for Exide, Panasonic, FIAMM, and AC Delco battery replacement.
For Exide applications, the dedicated Exide Car Battery Replacement Dubai page can provide more specific information.
For Panasonic batteries, drivers can refer to Panasonic Car Battery Replacement Dubai.
For FIAMM applications, the dedicated FIAMM Car Battery Replacement Dubai page provides another brand-specific resource.
For AC Delco battery requirements, the AC Delco Car Battery Replacement Dubai page is the relevant supporting resource.
These links are useful when a reader has already moved from general AGM construction research toward choosing a replacement battery.
32. How to Choose the Correct AGM Battery
Choosing an AGM battery should follow a technical process rather than simply selecting the largest or most expensive battery.
Check Battery Technology
Determine whether the vehicle requires AGM, EFB, or another technology.
Check Physical Dimensions
The replacement must fit the battery compartment correctly.
Check Capacity
Battery capacity should match the vehicle’s requirements.
Check Starting Rating
The starting-current specification must be suitable for the engine.
Check Terminal Position
Polarity and terminal configuration must match.
Check Mounting
The battery must be compatible with the vehicle’s retaining system.
Check Battery Management
Determine whether the vehicle requires battery registration or adaptation.
Check Charging Compatibility
The vehicle’s charging system must be appropriate for the replacement battery.
This process reduces the risk of premature battery failure.
33. AGM Battery Construction and Common Customer Mistakes
Several mistakes can reduce battery reliability.
Choosing Only by Price
The cheapest battery is not necessarily the correct battery.
Choosing Only by Brand
A premium brand does not make an incompatible battery suitable.
Ignoring the Charging System
A faulty alternator can damage a new battery.
Repeatedly Jumpstarting
Jumpstarting can provide temporary mobility but does not resolve an underlying fault.
Ignoring Long-Term Parking
A vehicle left unused for an extended period may gradually discharge its battery.
Ignoring Electrical Accessories
Aftermarket electronics can create unexpected parasitic drain.
Forgetting Battery Registration
Some vehicles require electronic adaptation after battery replacement.
34. AGM Battery Maintenance Checklist
AGM batteries are low maintenance, but that does not mean the vehicle can be ignored.
A practical maintenance checklist includes:
✔ Check battery condition periodically
✔ Inspect terminals and connections
✔ Confirm battery mounting
✔ Monitor changes in starting performance
✔ Test charging-system operation
✔ Investigate repeated discharge
✔ Check for parasitic electrical loads
✔ Follow the correct charging procedure
✔ Register the replacement battery where required
✔ Use the correct battery specification
For vehicles operating in hot environments, regular testing is especially useful.
35. AGM Battery Troubleshooting Guide
| Symptom | Possible Cause | Correct Diagnostic Direction |
|---|---|---|
| Slow engine cranking | Weak battery, poor connection, starter issue | Test battery and starting circuit |
| Battery repeatedly flat | Electrical drain, undercharging, weak battery | Test battery and parasitic load |
| Battery warning light | Charging-system issue | Check alternator and charging system |
| Start-stop disabled | Battery condition or system strategy | Scan and test battery system |
| New battery fails quickly | Charging fault or incorrect specification | Check battery and charging system |
| Vehicle fails after long parking | Discharge or battery deterioration | Test battery and electrical drain |
| Voltage appears normal but starting is weak | Reduced battery performance | Conduct battery health test |
| Battery case damaged | Physical or thermal damage | Replace battery and inspect cause |
The symptom alone should not determine the repair.
Professional diagnosis should identify the underlying cause.
36. AGM Battery Construction and Roadside Assistance
Battery failure is particularly inconvenient when it occurs away from home or a workshop.
A vehicle may become difficult or impossible to start after:
- Extended parking
- Repeated short journeys
- Heavy electrical use
- Battery deterioration
- Charging-system problems
In an emergency, a Car Jumpstart may help restart a vehicle when the battery is discharged but still capable of supporting the electrical system.
However, repeated jumpstarting should not become the long-term solution.
If the vehicle cannot safely continue driving, professional Roadside Assistance may be appropriate.
The objective should be to restore mobility while also determining why the battery failed.
37. AGM Battery Construction and Vehicle Inspection
Battery problems sometimes originate elsewhere in the vehicle.
A complete Vehicle Inspection can identify issues involving:
- Battery terminals
- Ground connections
- Alternator
- Starter
- Wiring
- Electrical accessories
- Charging system
- Battery-management components
This is particularly important when the same battery problem happens repeatedly.
For example, if a replacement battery becomes discharged after only a short period, the battery itself may not be the main problem.
A charging fault or parasitic drain may be responsible.
38. AGM Battery and Preventive Vehicle Maintenance
Battery reliability should be considered part of wider Vehicle Maintenance.
A vehicle’s electrical system interacts with many other systems.
For example:
- Engine condition affects starting demand.
- Starter condition affects battery load.
- Charging-system health affects battery recovery.
- Electrical accessories affect battery demand.
- Vehicle storage habits affect state of charge.
- Climate affects battery aging.
This means battery maintenance should not be treated as an isolated task.
A broader Car Service approach can help identify problems before they become emergency failures.
39. AGM Battery Construction and Automotive Diagnostics
Modern vehicles provide more diagnostic information than older vehicles.
Electronic diagnostic tools can sometimes identify:
- Battery-management faults
- Charging-system faults
- Voltage irregularities
- Control-module problems
- Communication issues
- Stored electrical-system faults
However, diagnostic codes should be interpreted alongside physical and electrical testing.
A diagnostic code does not automatically mean that the battery itself needs replacement.
Professional Engine Diagnostics can help establish whether a battery problem is actually caused by another system.
40. AGM Battery Construction: What Professionals Look For
A professional battery assessment typically considers the entire operating environment.
The technician should ask:
- What battery technology is installed?
- What battery does the manufacturer specify?
- How old is the battery?
- Has the vehicle required previous jumpstarts?
- Does the battery discharge while parked?
- Is the charging system operating correctly?
- Does the vehicle use start-stop technology?
- Does it have intelligent battery management?
- Are there aftermarket electrical accessories?
- Has the battery been replaced previously?
- Was the previous replacement registered where required?
These questions help distinguish battery failure from system-level problems.
41. Battery Construction and Service Life
AGM batteries do not have one universal service life.
Actual durability depends on operating conditions.
Important factors include:
- Temperature
- Driving frequency
- Journey length
- Charging-system condition
- Electrical demand
- Battery state of charge
- Parking duration
- Start-stop frequency
- Battery quality
- Vehicle design
A vehicle used for frequent short trips may place different demands on its battery than a vehicle driven regularly on longer journeys.
Similarly, a vehicle exposed to extreme heat may experience different aging characteristics from one operating in a moderate climate.
For this reason, testing battery condition is more useful than relying on a universal replacement date.
42. AGM Battery Construction and Extended Vehicle Storage
Extended vehicle storage can cause battery discharge.
Even when the engine is switched off, modern vehicles may continue consuming small amounts of electrical energy for security, memory, monitoring, and other functions.
Over a long enough period, that energy consumption can reduce battery state of charge.
Repeated deep discharge can be harmful to lead-acid battery chemistry.
If a vehicle will be stored for an extended period, owners should follow the vehicle and battery manufacturer’s recommended storage procedure.
The correct approach may involve suitable battery maintenance or charging equipment, depending on the vehicle.
43. AGM Battery Construction and Charging Equipment
When charging an AGM battery externally, the charger should support AGM battery requirements.
An appropriate charger can manage the charging process according to the battery’s specifications.
Important considerations include:
- Correct battery type selection
- Correct charging voltage
- Appropriate charging current
- Charger compatibility
- Manufacturer instructions
- Battery condition
Improper charging can cause damage.
If there is uncertainty about the battery’s condition or charging requirements, professional assistance is preferable to experimenting with an unsuitable charging setup.
44. Why a New AGM Battery Can Still Fail
Installing a new battery does not guarantee that the vehicle’s battery problems are solved.
A new AGM battery may discharge or deteriorate prematurely if:
- The alternator is faulty
- The vehicle has excessive parasitic drain
- The battery is undercharged
- The battery is incorrectly specified
- The battery-management system is not configured correctly
- The vehicle is subjected to unusually demanding conditions
- Electrical connections are poor
This is why professional diagnosis is more effective than repeatedly replacing batteries.
45. AGM Battery Construction and Cost Considerations
AGM batteries generally cost more than basic flooded batteries because of their construction, materials, manufacturing processes, and performance characteristics.
The final replacement cost can depend on:
- Battery brand
- Battery capacity
- Starting-current specification
- Physical size
- Vehicle application
- AGM technology
- Installation requirements
- Battery registration
- Emergency service requirements
For readers researching current battery pricing, EuroSwift Auto Services has a dedicated Car Battery Prices in Dubai 2026 guide that provides a more appropriate destination for price-focused search intent.
This article remains focused on construction, while the price guide serves the separate intent of understanding battery costs.
46. Why AGM Construction Matters for Vehicle Reliability
The internal construction of a battery directly influences how it behaves in the vehicle.
The glass mat retains electrolyte.
The plates provide the electrochemical reaction surface.
The case protects the internal assembly.
The valves regulate pressure.
The terminals deliver current.
The cells combine to produce the required voltage.
The charging system restores the battery’s chemical state.
The battery-management system may monitor and control its operation.
All of these elements work together.
A failure in one part of the wider system can affect the performance of the battery.
47. Latest Automotive Developments Affecting AGM Batteries
Automotive electrical systems continue to become more sophisticated.
Start-stop technology, intelligent charging, advanced energy management, and increasing electronic content have raised the importance of battery technology.
Modern battery systems increasingly depend on accurate monitoring rather than simple fixed charging.
This means technicians need to understand not only battery construction but also:
- Battery sensors
- Charging strategies
- Energy-management systems
- Electronic diagnostics
- Battery registration
- Vehicle-specific replacement procedures
The future of automotive battery service will therefore involve increasing integration between physical battery technology and electronic vehicle management.
48. Future Outlook for AGM Battery Technology
AGM technology remains important for many conventional vehicles and applications requiring reliable 12-volt electrical support.
Future development is likely to focus on improvements in:
- Charge acceptance
- Cycle durability
- Heat resistance
- Manufacturing consistency
- Active-material performance
- Battery monitoring
- Energy management
- Diagnostic accuracy
At the same time, vehicle electrification is introducing additional battery technologies and increasingly complex electrical architectures.
AGM batteries will therefore continue to occupy an important position while coexisting with EFB, lithium-based systems, and other emerging technologies.
49. Professional AGM Battery Replacement Checklist
Before approving an AGM battery replacement, a professional should ideally verify:
Battery Identification
✔ Existing battery type
✔ Manufacturer specification
✔ Capacity
✔ Starting-current rating
✔ Physical dimensions
Vehicle Compatibility
✔ Start-stop system
✔ Battery-management system
✔ Charging strategy
✔ Registration requirements
Electrical System
✔ Alternator
✔ Starter circuit
✔ Terminals
✔ Ground connections
✔ Parasitic drain
Installation
✔ Correct battery placement
✔ Secure mounting
✔ Correct polarity
✔ Proper terminal connection
✔ Electronic registration where required
This checklist reduces the risk of installing the correct-looking battery for the wrong application.
50. Key Takeaways About AGM Battery Construction
The most important points can be summarized clearly.
AGM means Absorbent Glass Mat.
The battery uses glass-fiber separators to absorb and retain electrolyte.
The electrolyte is immobilized rather than freely moving around the cells.
The positive and negative plates are held in a controlled internal structure.
The battery normally contains six cells for a nominal 12-volt automotive application.
Valve regulation controls internal pressure.
Oxygen recombination helps reduce water loss.
AGM construction provides strong vibration resistance.
Many AGM batteries are suitable for demanding start-stop applications.
Modern vehicles may require battery registration after replacement.
High temperatures can accelerate battery aging.
Incorrect charging can damage or shorten battery life.
Repeated discharge may indicate an electrical fault rather than simply a bad battery.
The correct replacement battery must match the vehicle’s technical requirements.
What Is AGM Battery Construction and How Is It Different From a Conventional Battery?
AGM battery construction uses an Absorbent Glass Mat separator to hold the electrolyte between the positive and negative plates. Unlike a conventional flooded battery, where the electrolyte remains freely around the plates, AGM technology immobilizes the electrolyte inside a highly porous fiberglass mat. This creates a compact internal structure that supports strong electrical performance while also improving resistance to vibration.
The construction also incorporates valve-regulated operation. Under normal conditions, gases generated during charging can participate in an internal recombination process, while pressure-relief valves manage excessive internal pressure. This is one reason AGM batteries are designed as low-maintenance units rather than batteries requiring routine electrolyte topping-up.
Key construction points:
Uses absorbent glass-mat separators
Electrolyte is immobilized rather than freely flowing
Positive and negative plates remain physically separated
Uses valve-regulated construction
Supports internal gas recombination
Provides strong vibration resistance
Designed for demanding automotive electrical applications
The important point is that AGM is not simply a conventional battery with a different separator. The plates, electrolyte, separator, compression, casing, and valve system are engineered to work together as one battery design.
Why Does AGM Battery Construction Make It Suitable for Start-Stop Vehicles?
Start-stop vehicles place different demands on a battery because the engine can shut down and restart repeatedly during normal driving. At the same time, electrical systems may continue operating while the engine is temporarily stopped.
AGM construction is well suited to many of these applications because it is designed for strong starting performance, good charge acceptance, and repeated cycling. Modern AGM batteries are specifically available for vehicles with start-stop systems and high electrical loads.
The advantage comes from the complete internal design rather than one individual component. The glass-mat separator keeps the electrolyte closely associated with the plates, while the overall construction can support a high-performance plate arrangement and stable internal assembly.
Why this matters in modern vehicles:
Frequent engine restarting increases battery demand
Electrical accessories may operate while the engine is stopped
The battery needs to recover charge efficiently
Repeated cycling requires appropriate battery construction
Intelligent charging systems may place additional demands on the battery
Advanced vehicles can have considerably higher electrical requirements
However, AGM should not be installed simply because a vehicle has start-stop technology. Some vehicles are designed around EFB or another battery technology. The vehicle manufacturer’s specification should always determine the correct replacement.
What Is Inside an AGM Battery?
Inside an AGM battery, you’ll find several interconnected components rather than simply a container filled with acid. The main elements include positive plates, negative plates, absorbent glass-mat separators, electrolyte, cell connections, terminals, casing, and pressure-regulating components.
The glass mat is positioned between the positive and negative plates. It absorbs the electrolyte and helps keep it available close to the active material. This arrangement also helps maintain physical stability within the battery.
A typical automotive 12-volt battery is constructed from six cells connected in series. Each cell contains its own plate groups and separator system, with the cells combining to provide the battery’s nominal voltage.
The main internal components include:
Positive plates: Participate in the electrochemical reaction.
Negative plates: Complete the complementary electrochemical reaction.
AGM separator: Keeps the plates separated while retaining electrolyte.
Electrolyte: Provides the medium required for the battery’s chemical reactions.
Cell connectors: Connect individual cells electrically.
Terminals: Transfer current between the battery and vehicle.
Case: Protects the internal assembly.
Valves: Manage internal pressure in the valve-regulated design.
This internal arrangement is also why AGM batteries should not be treated like ordinary serviceable flooded batteries. Their internal construction is engineered and sealed as a complete system.
Does AGM Battery Construction Require Special Charging?
AGM batteries require charging conditions appropriate to their design. The reason is closely connected to their valve-regulated construction and oxygen-recombination process. Charging voltage that is too high or otherwise inappropriate can interfere with normal battery operation, while persistent undercharging can leave the battery in a low state of charge and contribute to deterioration.
For modern vehicles, the charging system may be more complicated than a simple alternator producing a fixed voltage. Intelligent charging systems and battery-management components can monitor and control how the battery is charged.
That’s why a battery that repeatedly becomes weak should not automatically be replaced without checking the charging system.
Important charging considerations:
Use charging equipment appropriate for AGM technology.
Follow the battery manufacturer’s charging specifications.
Check alternator and voltage-regulation performance.
Avoid assuming that every lead-acid battery uses the same charging requirements.
Investigate repeated undercharging or overcharging.
Check the vehicle’s battery-management system where applicable.
Follow the manufacturer’s procedure when replacing or registering the battery.
A professional battery service should therefore evaluate both the battery and charging system. Installing a new AGM battery while leaving an underlying charging fault unresolved can lead to another premature failure.
How Does AGM Battery Construction Improve Performance and Reliability?
The main strength of AGM construction is the way multiple design features work together. The absorbent glass mat immobilizes the electrolyte, keeps the electrolyte close to the plates, and contributes to the mechanical stability of the internal assembly. The valve-regulated design supports controlled gas management, while the plate and cell arrangement is engineered for the electrical demands of the intended application.
This can make AGM technology particularly useful in vehicles exposed to vibration, frequent cycling, high electrical loads, or demanding start-stop operation. However, battery construction alone cannot overcome an unhealthy charging system, excessive parasitic drain, incorrect battery selection, or severe thermal stress.
The major practical advantages include:
Strong starting-current capability
Good charge acceptance
Improved vibration resistance
Immobilized electrolyte
Low-maintenance operation
Suitable cycling performance for demanding applications
Good compatibility with many modern start-stop vehicles
Support for vehicles with substantial electrical loads
For Dubai drivers, the wider operating environment also deserves attention. High temperatures, heavy traffic, frequent short journeys, air-conditioning demand, and extended parking can all influence battery condition. A properly specified AGM battery combined with regular Battery Testing, charging-system inspection, and appropriate Vehicle Maintenance is a much better approach than waiting for a complete no-start situation.
The most important takeaway is that AGM construction improves the battery’s design capability, but correct vehicle application, charging, installation, and maintenance ultimately determine how reliably that battery performs.
Conclusion
AGM Battery Construction is more than a simple improvement over a traditional lead-acid battery. Its absorbent glass mat separators, closely arranged plates, immobilized electrolyte, valve-regulated design, and controlled internal structure are engineered to deliver dependable electrical performance under demanding automotive conditions. This construction is one of the main reasons AGM batteries are widely used in vehicles that require strong starting power, repeated cycling, good charge acceptance, and support for advanced electrical systems.
For modern vehicles, choosing the correct AGM battery is only part of maintaining reliable performance. The battery must be correctly matched to the vehicle’s specifications, charging system, electrical architecture, and battery-management requirements. A battery that fits physically may still be unsuitable if its technology, capacity, starting specification, or charging characteristics do not match the vehicle.
Operating conditions also matter. In Dubai, high temperatures, heavy traffic, frequent short journeys, extended parking, and continuous use of electrical and air-conditioning systems can place additional demands on the vehicle’s battery and charging system. Regular Battery Testing, proper Vehicle Maintenance, and timely Battery Replacement can help identify declining battery performance before it becomes an unexpected roadside problem.
Most importantly, repeated battery failure should never be treated simply by installing another battery. Problems such as alternator faults, poor electrical connections, parasitic drain, incorrect battery registration, or battery-management issues can produce symptoms that appear to be battery failure. A professional inspection can identify the actual cause and prevent unnecessary replacement.
For drivers who need further assistance, EuroSwift Auto Services provides battery-related support alongside Car Jumpstart, Roadside Assistance, Vehicle Inspection, Engine Diagnostics, and Car Service. Understanding AGM construction helps vehicle owners make more informed decisions, while professional diagnosis and correct installation ensure that the battery technology performs as intended.
Ultimately, a reliable AGM battery depends on three things working together: the right construction, the right vehicle application, and the right maintenance. When these are properly managed, AGM technology can provide a strong and dependable foundation for the electrical demands of today’s modern vehicles.
Leave a Reply
